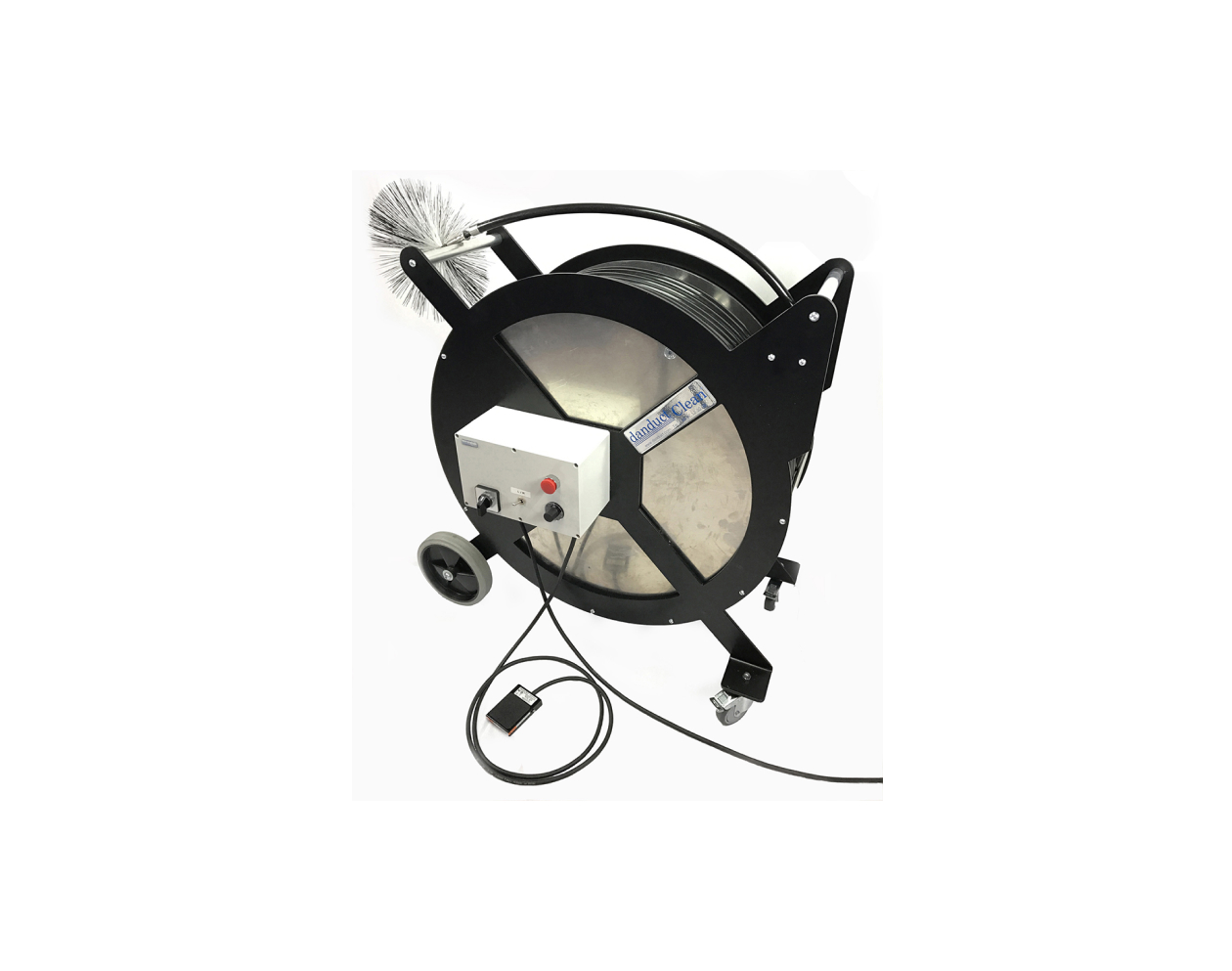

The DC5 duct cleaning machine is a complete brush cleaning machine for ventilation ducts from 100 mm up to 600 mm. The DC5 duct cleaning machine is an electrical driven brush machine and is ready to be operated immediately after connecting it to a power supply. The design of the DC5 duct cleaning machines gives the possibility to operate the machine just under the beneath the duct and not much space is required. The operator of the DC5 duct cleaning machine just press the foot pedal and slowly push the rotating brush in the duct. The length of the shaft for the DC5 machine is 20 meter long.
Power: | 230 V |
Motor: | 0,37 Kw (0,5 Hp) – 50/60HZ |
Length: | 86 cm |
Wdth: | 50 cm |
Height: | 86 cm |
Total weight including 20 m shaft: | 55 Kg |
Length of shaft: | 20m |
Control of turning direction: | Yes |
Control of turning speed for the Brush: | Yes |
Cleaning diameters: | 100-600 mm (holder from 350 mm) |

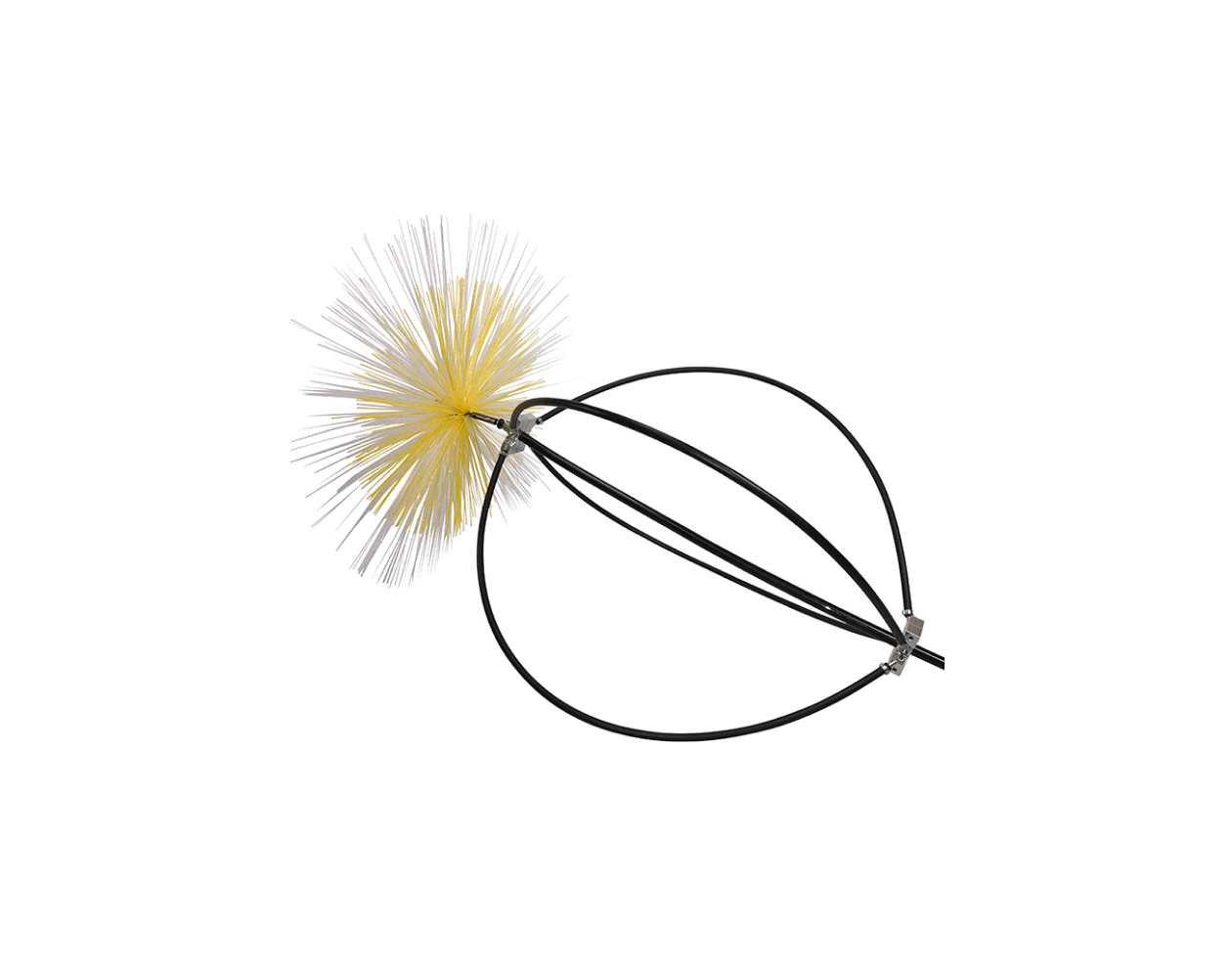

50610335 | DC5 – Centreliser for holding the shaft – to be use above 350 mm |

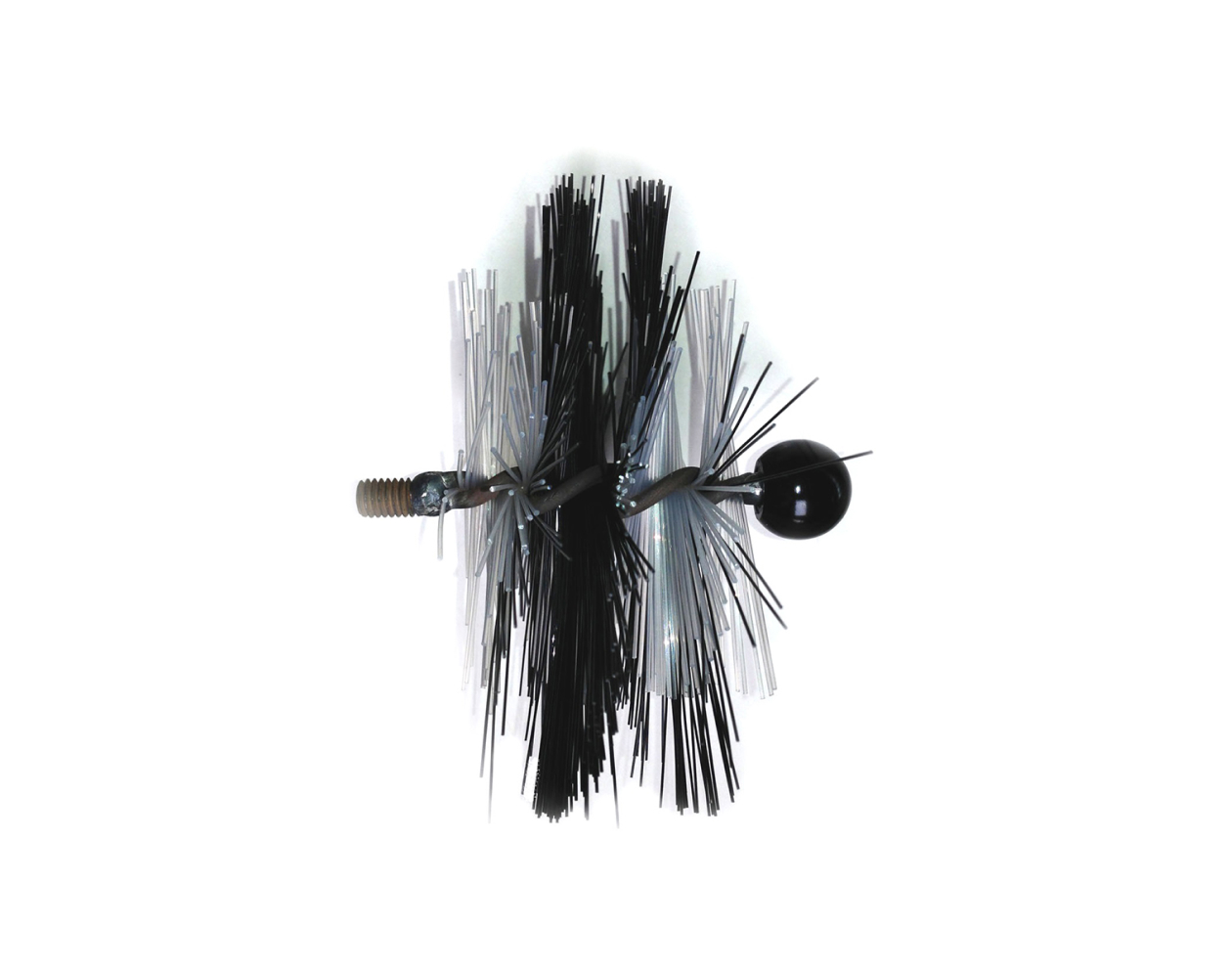

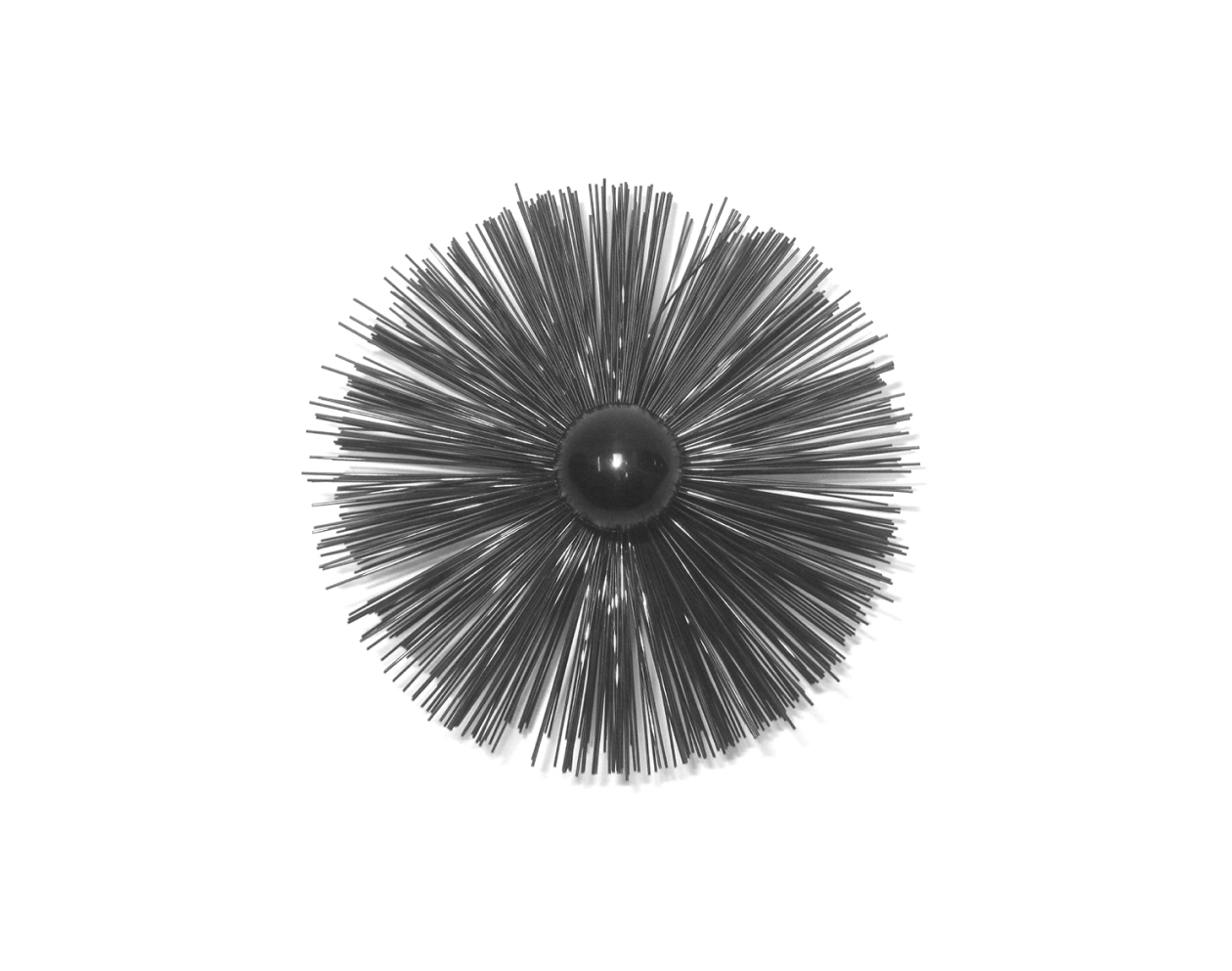

50609100 | Brush for and square ducts 0,6/0,9 PP (100mm) |
50609160 | Brush for and square ducts 0,6/0,9 PP (160mm) |
50609200 | Brush for and square ducts 0,6/0,9 PP (200mm) |
50609300 | Brush for and square ducts 0,6/0,9 PP (300mm) |
50609400 | Brush for and square ducts 0,6/0,9 PP (400mm) |
50609500 | Brush for and square ducts 0,6/0,9 PP (500mm) |
50609600 | Brush for and square ducts 0,6/0,9 PP (600mm) |
50609005 | PPT Brush package 7 pcs Dia100/Dia600 |
50609100TY | Brush for and square ducts TYNES (100mm) |
50609160TY | Brush for and square ducts TYNES (160mm) |
50609200TY | Brush for and square ducts TYNES (200mm) |
50609300TY | Brush for and square ducts TYNES (300mm) |
50609400TY | Brush for and square ducts TYNES (400mm) |
50609500TY | Brush for and square ducts TYNES (500mm) |
50609600TY | Brush for and square ducts TYNES (500mm) |
50609605TY | Tynex Brush package 7 pcs Dia100/Dia600 |
